Datapoints for he4 + ce166 -> n + nd169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-316 |
| 0.15 | 3.347733e-224 |
| 0.2 | 1.359328e-171 |
| 0.3 | 2.498068e-114 |
| 0.4 | 2.622917e-84 |
| 0.5 | 3.393193e-66 |
| 0.6 | 2.797869e-54 |
| 0.7 | 5.930029e-46 |
| 0.8 | 7.231576e-40 |
| 0.9 | 2.948706e-35 |
| 1 | 1.164862e-31 |
| 1.5 | 2.192164e-21 |
| 2 | 2.317504e-16 |
| 2.5 | 3.882196e-13 |
| 3 | 9.991009e-11 |
| 3.5 | 9.000221e-09 |
| 4 | 4.033809e-07 |
| 4.5 | 1.068718e-05 |
| 5 | 1.843336e-04 |
| 6 | 1.901416e-02 |
| 7 | 6.136865e-01 |
| 8 | 7.737156e+00 |
| 9 | 4.553905e+01 |
| 10 | 1.457097e+02 |

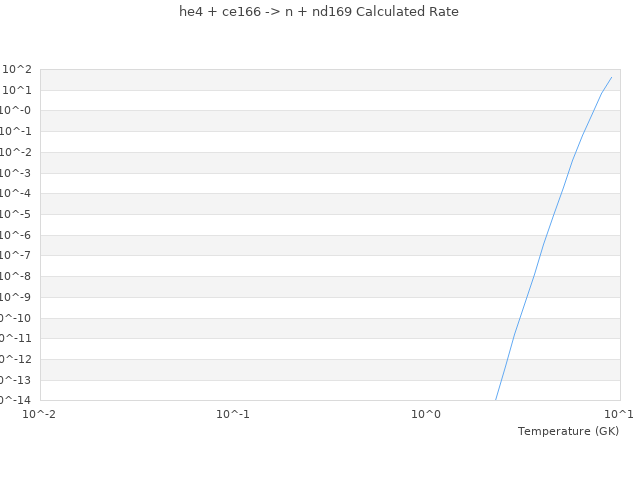

| View Graph | |
