Datapoints for nd171 -> he4 + ce167
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-323 |
| 0.3 | 6.921044e-217 |
| 0.4 | 5.670354e-162 |
| 0.5 | 1.780804e-128 |
| 0.6 | 5.535467e-106 |
| 0.7 | 7.008230e-90 |
| 0.8 | 8.281492e-78 |
| 0.9 | 1.960496e-68 |
| 1 | 5.967947e-61 |
| 1.5 | 1.359952e-38 |
| 2 | 2.256266e-27 |
| 2.5 | 1.673760e-20 |
| 3 | 8.855626e-16 |
| 3.5 | 2.752223e-12 |
| 4 | 1.402537e-09 |
| 4.5 | 2.050991e-07 |
| 5 | 1.200542e-05 |
| 6 | 5.756961e-03 |
| 7 | 4.304334e-01 |
| 8 | 8.668543e+00 |
| 9 | 6.580413e+01 |
| 10 | 2.365817e+02 |

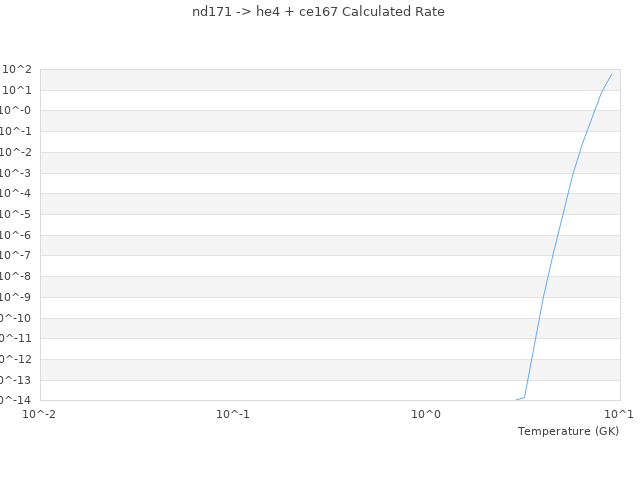

| View Graph | |
