Datapoints for nd172 -> he4 + ce168
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 1.235564e-222 |
| 0.4 | 2.407255e-166 |
| 0.5 | 4.945230e-132 |
| 0.6 | 5.362844e-109 |
| 0.7 | 1.667821e-92 |
| 0.8 | 3.904134e-80 |
| 0.9 | 1.589429e-70 |
| 1 | 7.542822e-63 |
| 1.5 | 7.204137e-40 |
| 2 | 2.702155e-28 |
| 2.5 | 3.415304e-21 |
| 3 | 2.603474e-16 |
| 3.5 | 1.041120e-12 |
| 4 | 6.291697e-10 |
| 4.5 | 1.026468e-07 |
| 5 | 6.399208e-06 |
| 6 | 3.156578e-03 |
| 7 | 2.238431e-01 |
| 8 | 4.111218e+00 |
| 9 | 2.819682e+01 |
| 10 | 9.276863e+01 |

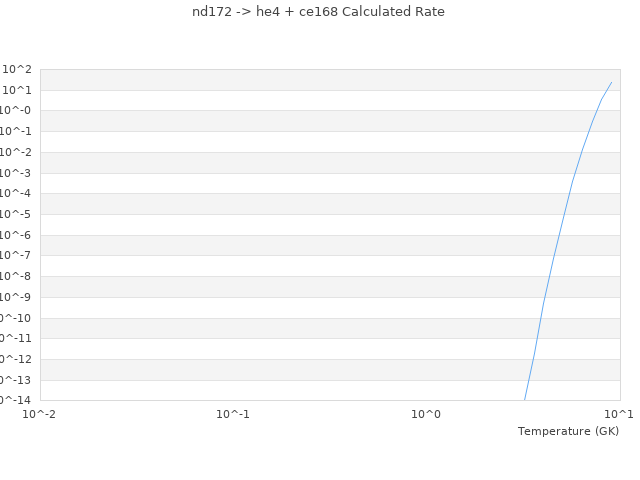

| View Graph | |
