Datapoints for n + nd171 -> he4 + ce168
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 6.571400e-259 |
| 0.3 | 1.772555e-172 |
| 0.4 | 7.182859e-128 |
| 0.5 | 5.219442e-101 |
| 0.6 | 2.908414e-83 |
| 0.7 | 8.935192e-71 |
| 0.8 | 1.431228e-61 |
| 0.9 | 1.547038e-54 |
| 1 | 5.286621e-49 |
| 1.5 | 6.247637e-33 |
| 2 | 5.104429e-25 |
| 2.5 | 4.573315e-20 |
| 3 | 1.663738e-16 |
| 3.5 | 9.927833e-14 |
| 4 | 1.837489e-11 |
| 4.5 | 1.467996e-09 |
| 5 | 6.128149e-08 |
| 6 | 2.385234e-05 |
| 7 | 1.990694e-03 |
| 8 | 5.116105e-02 |
| 9 | 5.228166e-01 |
| 10 | 2.590853e+00 |

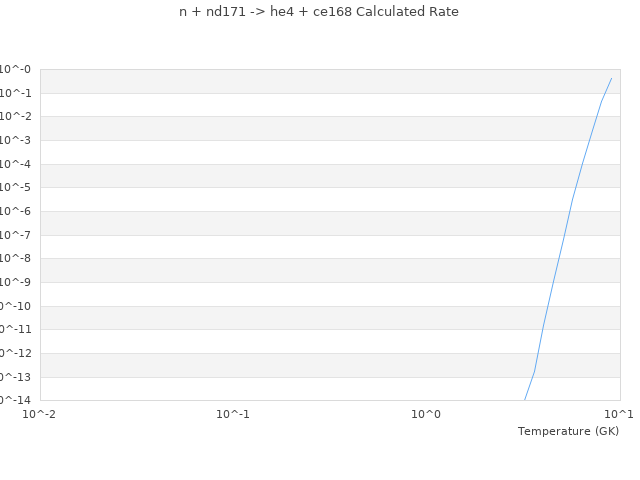

| View Graph | |
