Datapoints for nd174 -> he4 + ce170
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 2.172464e-235 |
| 0.4 | 6.779445e-176 |
| 0.5 | 1.177838e-139 |
| 0.6 | 2.473424e-115 |
| 0.7 | 6.404288e-98 |
| 0.8 | 7.357450e-85 |
| 0.9 | 1.032850e-74 |
| 1 | 1.319605e-66 |
| 1.5 | 2.446479e-42 |
| 2 | 3.988180e-30 |
| 2.5 | 1.199591e-22 |
| 3 | 1.609231e-17 |
| 3.5 | 9.536580e-14 |
| 4 | 7.680161e-11 |
| 4.5 | 1.558005e-08 |
| 5 | 1.152431e-06 |
| 6 | 7.332115e-04 |
| 7 | 6.283029e-02 |
| 8 | 1.353692e+00 |
| 9 | 1.078855e+01 |
| 10 | 4.136627e+01 |

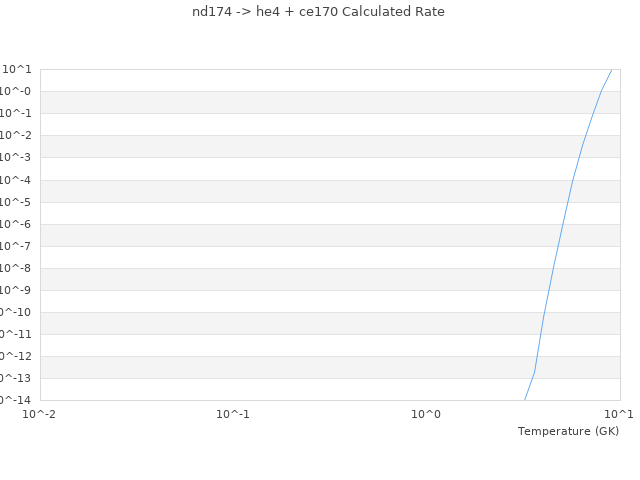

| View Graph | |
