Datapoints for nd175 -> he4 + ce171
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 6.157724e-237 |
| 0.4 | 5.085792e-177 |
| 0.5 | 1.640184e-140 |
| 0.6 | 5.264840e-116 |
| 0.7 | 1.849029e-98 |
| 0.8 | 2.662153e-85 |
| 0.9 | 4.432668e-75 |
| 1 | 6.455690e-67 |
| 1.5 | 1.665157e-42 |
| 2 | 2.994086e-30 |
| 2.5 | 9.253564e-23 |
| 3 | 1.253435e-17 |
| 3.5 | 7.519787e-14 |
| 4 | 6.192270e-11 |
| 4.5 | 1.300040e-08 |
| 5 | 1.007008e-06 |
| 6 | 7.237546e-04 |
| 7 | 7.200734e-02 |
| 8 | 1.824839e+00 |
| 9 | 1.711292e+01 |
| 10 | 7.641968e+01 |

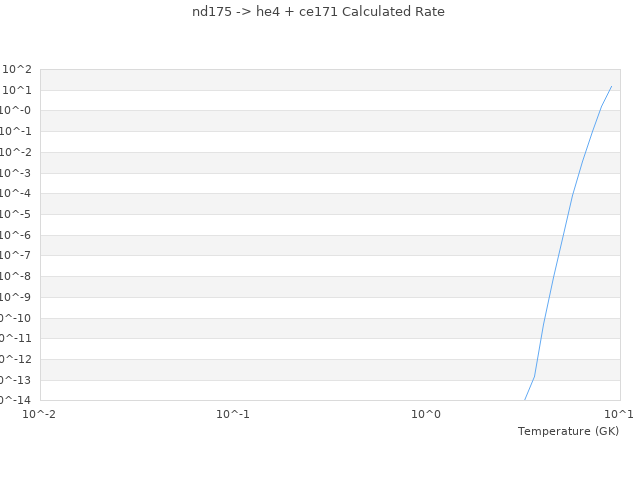

| View Graph | |
