Datapoints for nd177 -> he4 + ce173
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 2.814696e-247 |
| 0.4 | 1.028837e-184 |
| 0.5 | 1.287415e-146 |
| 0.6 | 4.722986e-121 |
| 0.7 | 9.412576e-103 |
| 0.8 | 4.962615e-89 |
| 0.9 | 2.259883e-78 |
| 1 | 7.339987e-70 |
| 1.5 | 2.061042e-44 |
| 2 | 1.215737e-31 |
| 2.5 | 7.738803e-24 |
| 3 | 1.722890e-18 |
| 3.5 | 1.497811e-14 |
| 4 | 1.653182e-11 |
| 4.5 | 4.413713e-09 |
| 5 | 4.184855e-07 |
| 6 | 4.146482e-04 |
| 7 | 5.228305e-02 |
| 8 | 1.568138e+00 |
| 9 | 1.636909e+01 |
| 10 | 7.678091e+01 |

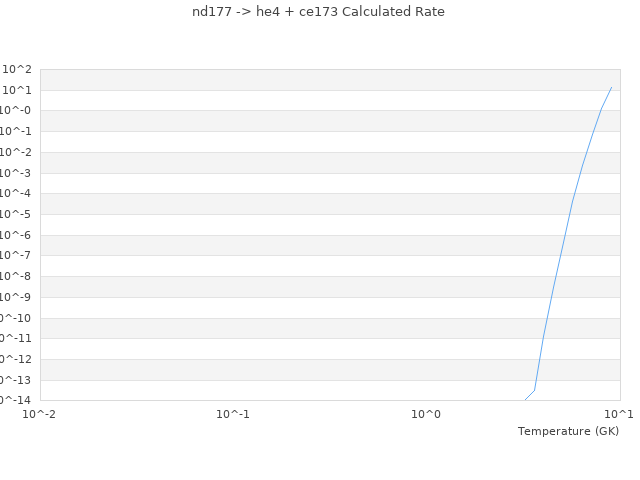

| View Graph | |
