Datapoints for nd190 -> he4 + ce186
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 7.004553e-252 |
| 0.4 | 2.023576e-188 |
| 0.5 | 8.955009e-150 |
| 0.6 | 7.674390e-124 |
| 0.7 | 2.808139e-105 |
| 0.8 | 2.335589e-91 |
| 0.9 | 1.515847e-80 |
| 1 | 6.535114e-72 |
| 1.5 | 4.281226e-46 |
| 2 | 3.840034e-33 |
| 2.5 | 3.117786e-25 |
| 3 | 8.071254e-20 |
| 3.5 | 7.713159e-16 |
| 4 | 9.015975e-13 |
| 4.5 | 2.484072e-10 |
| 5 | 2.386205e-08 |
| 6 | 2.342462e-05 |
| 7 | 2.854556e-03 |
| 8 | 8.221949e-02 |
| 9 | 8.295539e-01 |
| 10 | 3.821618e+00 |

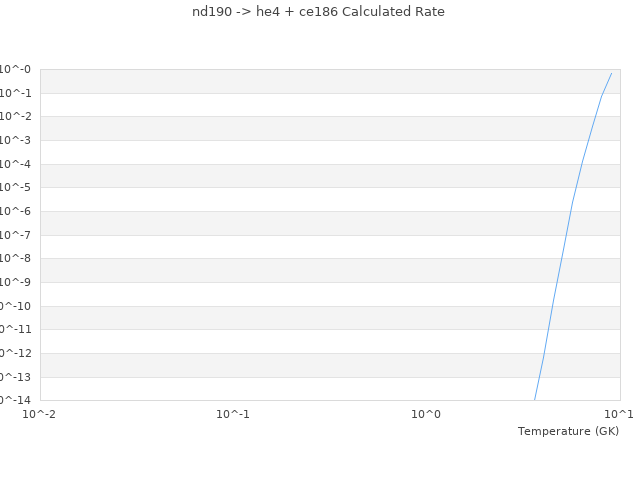

| View Graph | |
