Datapoints for n + nd196 -> he4 + ce193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | 3.473260e-252 |
| 0.5 | 1.086910e-199 |
| 0.6 | 6.687456e-165 |
| 0.7 | 2.791754e-140 |
| 0.8 | 5.213511e-122 |
| 0.9 | 5.969020e-108 |
| 1 | 8.089581e-97 |
| 1.5 | 4.084394e-64 |
| 2 | 5.117255e-48 |
| 2.5 | 3.330194e-38 |
| 3 | 2.030326e-31 |
| 3.5 | 2.424111e-26 |
| 4 | 2.410540e-22 |
| 4.5 | 4.330656e-19 |
| 5 | 2.212357e-16 |
| 6 | 3.796010e-12 |
| 7 | 4.800946e-09 |
| 8 | 9.322502e-07 |
| 9 | 4.391580e-05 |
| 10 | 6.892848e-04 |

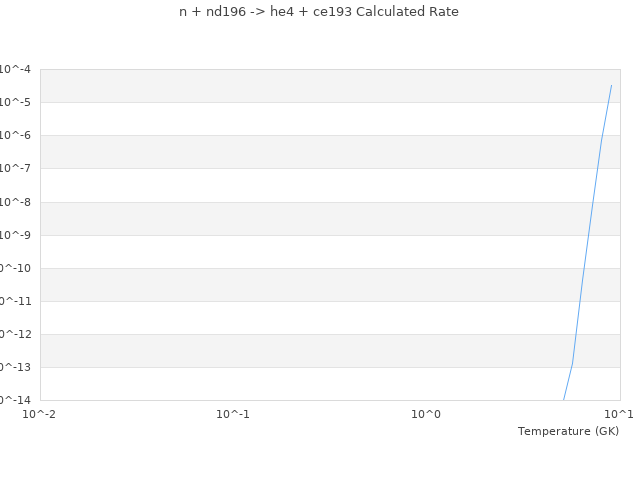

| View Graph | |
