Datapoints for he4 + ce193 -> n + nd196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.885310e-233 |
| 0.2 | 6.015447e-178 |
| 0.3 | 1.435932e-117 |
| 0.4 | 5.692932e-86 |
| 0.5 | 5.876220e-67 |
| 0.6 | 1.725980e-54 |
| 0.7 | 8.203293e-46 |
| 0.8 | 1.688470e-39 |
| 0.9 | 9.678220e-35 |
| 1 | 4.758192e-31 |
| 1.5 | 1.146870e-20 |
| 2 | 9.927932e-16 |
| 2.5 | 1.300027e-12 |
| 3 | 2.721590e-10 |
| 3.5 | 2.104150e-08 |
| 4 | 8.493544e-07 |
| 4.5 | 2.105883e-05 |
| 5 | 3.496717e-04 |
| 6 | 3.515763e-02 |
| 7 | 1.131495e+00 |
| 8 | 1.399857e+01 |
| 9 | 7.746845e+01 |
| 10 | 2.192124e+02 |

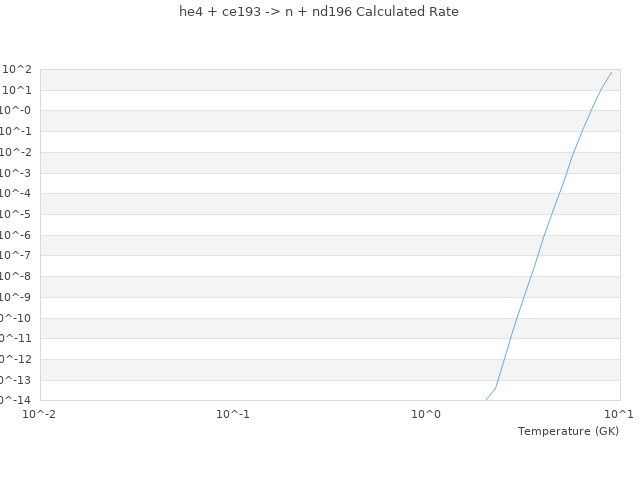

| View Graph | |
