Datapoints for nd198 -> he4 + ce194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | INFe-322 |
| 0.4 | 8.993848e-241 |
| 0.5 | 3.018414e-191 |
| 0.6 | 4.510933e-158 |
| 0.7 | 2.360697e-134 |
| 0.8 | 1.386666e-116 |
| 0.9 | 8.541756e-103 |
| 1 | 8.580833e-92 |
| 1.5 | 5.335266e-59 |
| 2 | 1.149028e-42 |
| 2.5 | 9.067194e-33 |
| 3 | 4.891288e-26 |
| 3.5 | 4.187879e-21 |
| 4 | 2.637035e-17 |
| 4.5 | 2.811182e-14 |
| 5 | 8.300772e-12 |
| 6 | 4.796414e-08 |
| 7 | 2.200446e-05 |
| 8 | 1.694143e-03 |
| 9 | 3.390086e-02 |
| 10 | 2.339331e-01 |

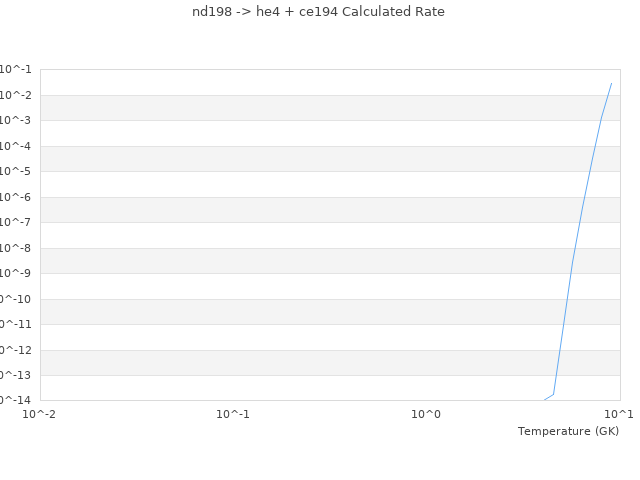

| View Graph | |
