Datapoints for nd136 -> p + pr135
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 3.107292e-217 |
| 0.2 | 2.334477e-160 |
| 0.3 | 3.334037e-104 |
| 0.4 | 1.535909e-76 |
| 0.5 | 4.839471e-60 |
| 0.6 | 5.223322e-49 |
| 0.7 | 4.852663e-41 |
| 0.8 | 5.839139e-35 |
| 0.9 | 3.989019e-30 |
| 1 | 3.695824e-26 |
| 1.5 | 2.575812e-13 |
| 2 | 5.745672e-06 |
| 2.5 | 4.074253e-01 |
| 3 | 1.017647e+03 |
| 3.5 | 2.813030e+05 |
| 4 | 1.663991e+07 |
| 4.5 | 3.235545e+08 |
| 5 | 2.799948e+09 |
| 6 | 4.339067e+10 |
| 7 | 2.240773e+11 |
| 8 | 8.987743e+11 |
| 9 | 5.075818e+12 |
| 10 | 6.245329e+13 |

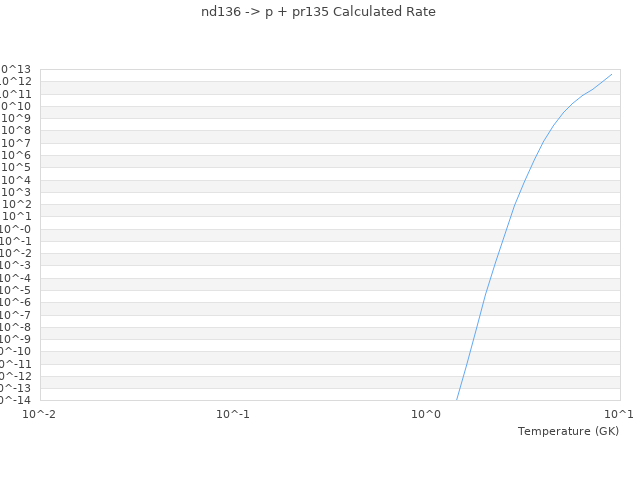

| View Graph | |
