Datapoints for p + pr192 -> nd193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.335551e-123 |
| 0.15 | 4.301999e-74 |
| 0.2 | 1.885971e-50 |
| 0.3 | 9.674829e-30 |
| 0.4 | 8.408682e-22 |
| 0.5 | 2.742477e-18 |
| 0.6 | 1.462582e-16 |
| 0.7 | 1.314298e-15 |
| 0.8 | 5.409229e-15 |
| 0.9 | 1.608752e-14 |
| 1 | 4.278467e-14 |
| 1.5 | 7.479404e-12 |
| 2 | 2.140001e-09 |
| 2.5 | 3.723555e-07 |
| 3 | 2.364956e-05 |
| 3.5 | 4.911541e-04 |
| 4 | 3.623387e-03 |
| 4.5 | 1.119043e-02 |
| 5 | 1.752909e-02 |
| 6 | 1.209938e-02 |
| 7 | 4.935797e-03 |
| 8 | 3.921752e-03 |
| 9 | 1.601585e-02 |
| 10 | 7.367082e-01 |

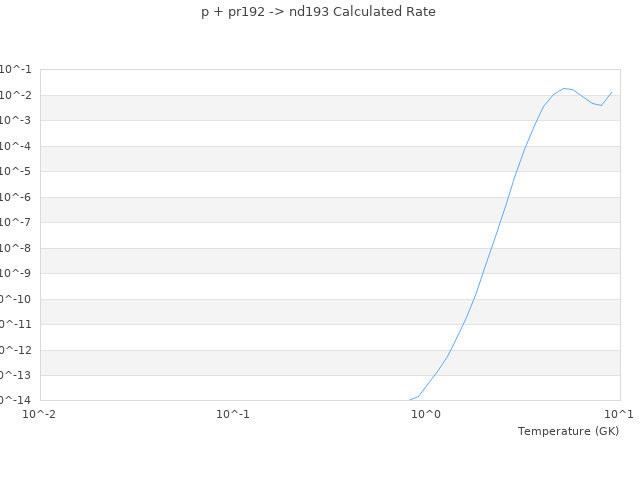

| View Graph | |
