Datapoints for p + pr196 -> nd197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.424967e-123 |
| 0.15 | 8.668956e-74 |
| 0.2 | 4.855951e-50 |
| 0.3 | 2.680117e-29 |
| 0.4 | 2.134832e-21 |
| 0.5 | 6.192273e-18 |
| 0.6 | 2.946686e-16 |
| 0.7 | 2.391607e-15 |
| 0.8 | 9.011961e-15 |
| 0.9 | 2.485318e-14 |
| 1 | 6.197860e-14 |
| 1.5 | 8.828886e-12 |
| 2 | 2.291291e-09 |
| 2.5 | 3.780268e-07 |
| 3 | 2.316315e-05 |
| 3.5 | 4.665276e-04 |
| 4 | 3.337613e-03 |
| 4.5 | 9.975058e-03 |
| 5 | 1.508236e-02 |
| 6 | 9.643882e-03 |
| 7 | 3.637910e-03 |
| 8 | 2.689498e-03 |
| 9 | 1.036098e-02 |
| 10 | 4.588181e-01 |

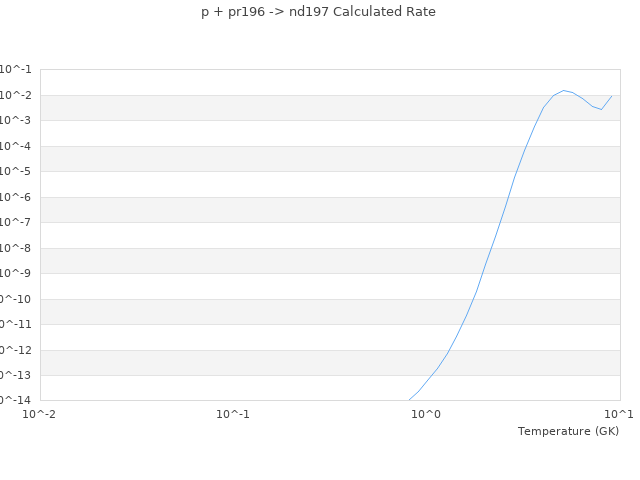

| View Graph | |
