Datapoints for p + nd126 -> pm127
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.336305e-48 |
| 0.15 | 5.169763e-35 |
| 0.2 | 6.735965e-29 |
| 0.3 | 1.587496e-22 |
| 0.4 | 7.669046e-19 |
| 0.5 | 3.036624e-16 |
| 0.6 | 3.061795e-14 |
| 0.7 | 1.281121e-12 |
| 0.8 | 2.880093e-11 |
| 0.9 | 4.065686e-10 |
| 1 | 3.994137e-09 |
| 1.5 | 1.138427e-05 |
| 2 | 1.276614e-03 |
| 2.5 | 2.792428e-02 |
| 3 | 2.390046e-01 |
| 3.5 | 1.138448e+00 |
| 4 | 3.666844e+00 |
| 4.5 | 8.950921e+00 |
| 5 | 1.774775e+01 |
| 6 | 4.372737e+01 |
| 7 | 6.605569e+01 |
| 8 | 6.564320e+01 |
| 9 | 4.380269e+01 |
| 10 | 1.959064e+01 |

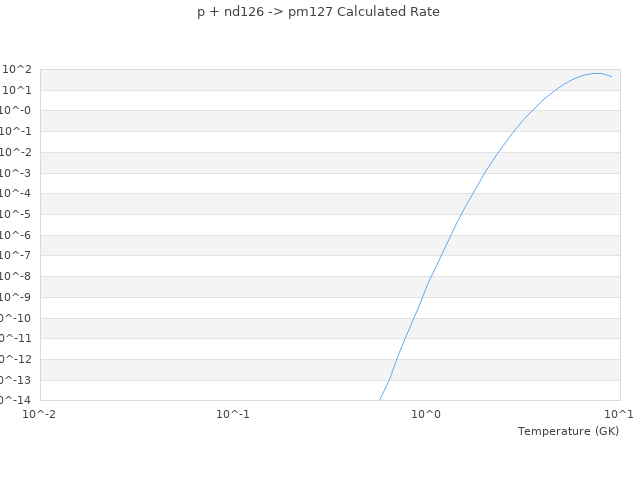

| View Graph | |
