Datapoints for sm130 -> he4 + nd126
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.770829e-194 |
| 0.15 | 2.180806e-128 |
| 0.2 | 6.712601e-93 |
| 0.3 | 4.188514e-56 |
| 0.4 | 8.660008e-38 |
| 0.5 | 3.696211e-27 |
| 0.6 | 2.276673e-20 |
| 0.7 | 9.939131e-16 |
| 0.8 | 2.172763e-12 |
| 0.9 | 6.973518e-10 |
| 1 | 6.188786e-08 |
| 1.5 | 2.779831e-02 |
| 2 | 2.507551e+01 |
| 2.5 | 2.529341e+03 |
| 3 | 8.267483e+04 |
| 3.5 | 1.285357e+06 |
| 4 | 1.139481e+07 |
| 4.5 | 6.424198e+07 |
| 5 | 2.492285e+08 |
| 6 | 1.562922e+09 |
| 7 | 4.262389e+09 |
| 8 | 7.052590e+09 |
| 9 | 9.319136e+09 |
| 10 | 1.236908e+10 |

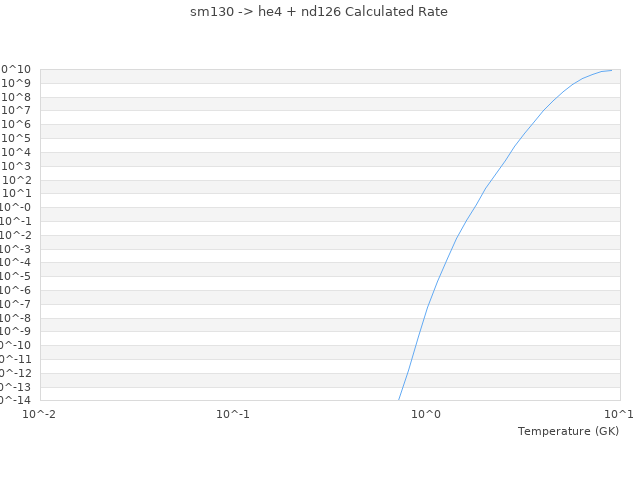

| View Graph | |
