Datapoints for sm134 -> he4 + nd130
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.035488e-253 |
| 0.15 | 9.996465e-166 |
| 0.2 | 5.360008e-118 |
| 0.3 | 5.665069e-69 |
| 0.4 | 3.857033e-45 |
| 0.5 | 1.056118e-31 |
| 0.6 | 2.201733e-23 |
| 0.7 | 7.105890e-18 |
| 0.8 | 4.989269e-14 |
| 0.9 | 3.203904e-11 |
| 1 | 4.327305e-09 |
| 1.5 | 4.087091e-03 |
| 2 | 6.192389e+00 |
| 2.5 | 1.272103e+03 |
| 3 | 9.246105e+04 |
| 3.5 | 3.132962e+06 |
| 4 | 5.564214e+07 |
| 4.5 | 5.607816e+08 |
| 5 | 3.443732e+09 |
| 6 | 3.870353e+10 |
| 7 | 1.345236e+11 |
| 8 | 2.353289e+11 |
| 9 | 3.183547e+11 |
| 10 | 4.829320e+11 |

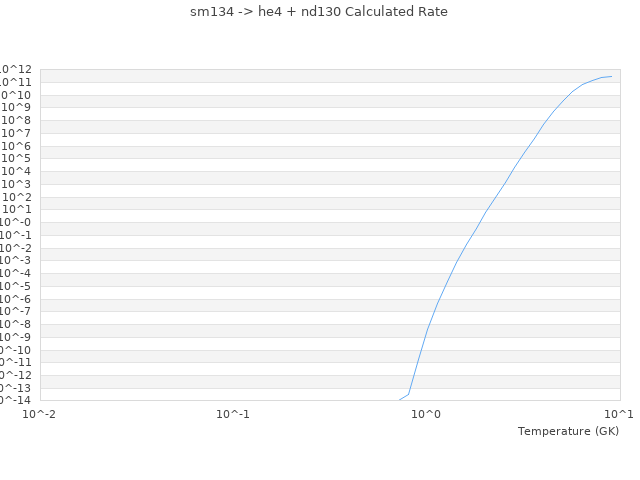

| View Graph | |
