Datapoints for sm135 -> he4 + nd131
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.301836e-214 |
| 0.15 | 8.382163e-142 |
| 0.2 | 2.830590e-102 |
| 0.3 | 1.943017e-61 |
| 0.4 | 2.756581e-41 |
| 0.5 | 1.043347e-29 |
| 0.6 | 2.175708e-22 |
| 0.7 | 1.956756e-17 |
| 0.8 | 6.718941e-14 |
| 0.9 | 2.906394e-11 |
| 1 | 3.184508e-09 |
| 1.5 | 2.700262e-03 |
| 2 | 4.411471e+00 |
| 2.5 | 8.737788e+02 |
| 3 | 5.808153e+04 |
| 3.5 | 1.819755e+06 |
| 4 | 3.133723e+07 |
| 4.5 | 3.259331e+08 |
| 5 | 2.201065e+09 |
| 6 | 3.505844e+10 |
| 7 | 1.958821e+11 |
| 8 | 5.566174e+11 |
| 9 | 1.104979e+12 |
| 10 | 2.008466e+12 |

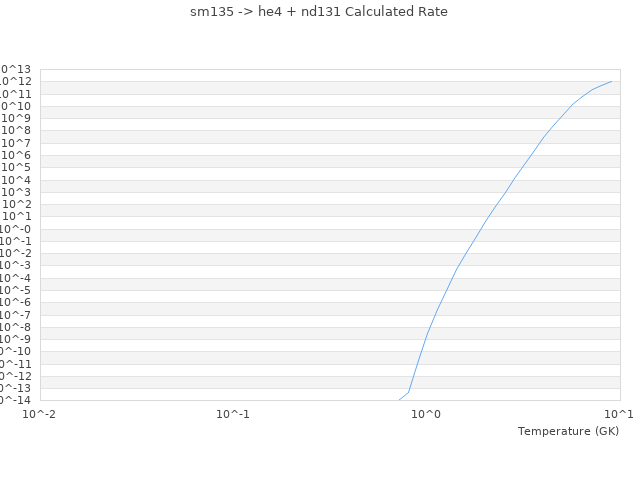

| View Graph | |
