Datapoints for sm136 -> he4 + nd132
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.678744e-224 |
| 0.15 | 4.449383e-148 |
| 0.2 | 6.253897e-107 |
| 0.3 | 2.149690e-64 |
| 0.4 | 2.096353e-43 |
| 0.5 | 2.377097e-31 |
| 0.6 | 9.868947e-24 |
| 0.7 | 1.413883e-18 |
| 0.8 | 6.785157e-15 |
| 0.9 | 3.782494e-12 |
| 1 | 5.067853e-10 |
| 1.5 | 8.168390e-04 |
| 2 | 2.011970e+00 |
| 2.5 | 5.463187e+02 |
| 3 | 4.656996e+04 |
| 3.5 | 1.767672e+06 |
| 4 | 3.506270e+07 |
| 4.5 | 4.016933e+08 |
| 5 | 2.873450e+09 |
| 6 | 4.665990e+10 |
| 7 | 2.416649e+11 |
| 8 | 5.990598e+11 |
| 9 | 1.005096e+12 |
| 10 | 1.532792e+12 |

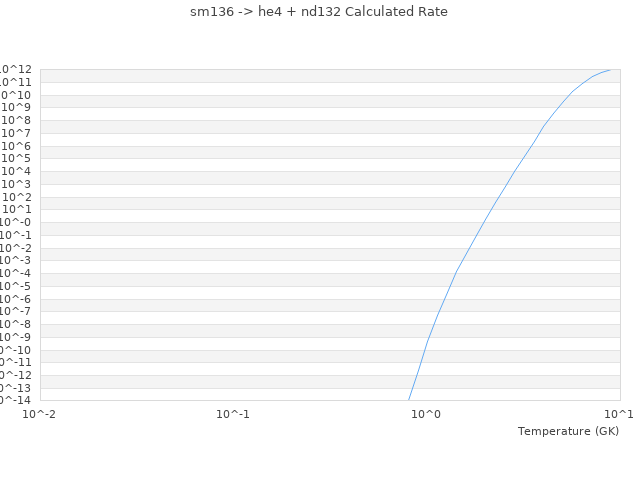

| View Graph | |
