Datapoints for he4 + nd136 -> sm140
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.738059e-224 |
| 0.2 | 1.096080e-168 |
| 0.3 | 4.587528e-111 |
| 0.4 | 3.255010e-82 |
| 0.5 | 2.887842e-65 |
| 0.6 | 2.785868e-54 |
| 0.7 | 1.174227e-46 |
| 0.8 | 4.400923e-41 |
| 0.9 | 7.741932e-37 |
| 1 | 1.710862e-33 |
| 1.5 | 1.539141e-23 |
| 2 | 3.091252e-18 |
| 2.5 | 1.173394e-14 |
| 3 | 5.739462e-12 |
| 3.5 | 7.566235e-10 |
| 4 | 3.844144e-08 |
| 4.5 | 9.285063e-07 |
| 5 | 1.229918e-05 |
| 6 | 5.368002e-04 |
| 7 | 6.143686e-03 |
| 8 | 2.985600e-02 |
| 9 | 9.004219e-02 |
| 10 | 2.293067e-01 |

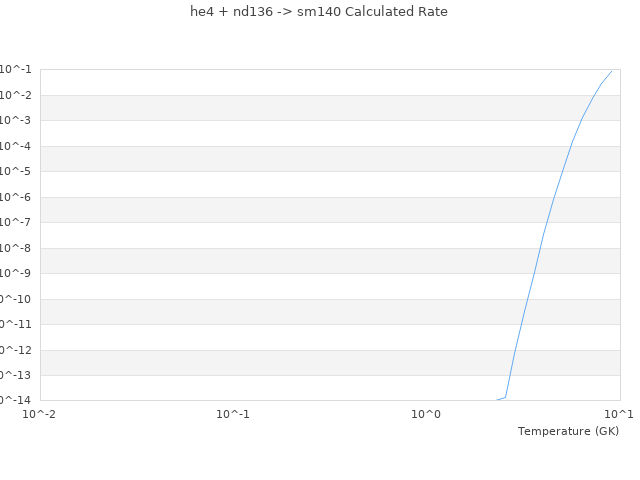

| View Graph | |
