Datapoints for sm140 -> he4 + nd136
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.154540e-231 |
| 0.15 | 3.009716e-156 |
| 0.2 | 6.558315e-115 |
| 0.3 | 1.131739e-71 |
| 0.4 | 5.856909e-50 |
| 0.5 | 2.926704e-37 |
| 0.6 | 4.362686e-29 |
| 0.7 | 1.871815e-23 |
| 0.8 | 2.309487e-19 |
| 0.9 | 2.916128e-16 |
| 1 | 7.965514e-14 |
| 1.5 | 1.547499e-06 |
| 2 | 1.640600e-02 |
| 2.5 | 1.150116e+01 |
| 3 | 1.918599e+03 |
| 3.5 | 1.215829e+05 |
| 4 | 3.663320e+06 |
| 4.5 | 6.017834e+07 |
| 5 | 5.954546e+08 |
| 6 | 1.740118e+10 |
| 7 | 1.550048e+11 |
| 8 | 6.411842e+11 |
| 9 | 1.742014e+12 |
| 10 | 4.149533e+12 |

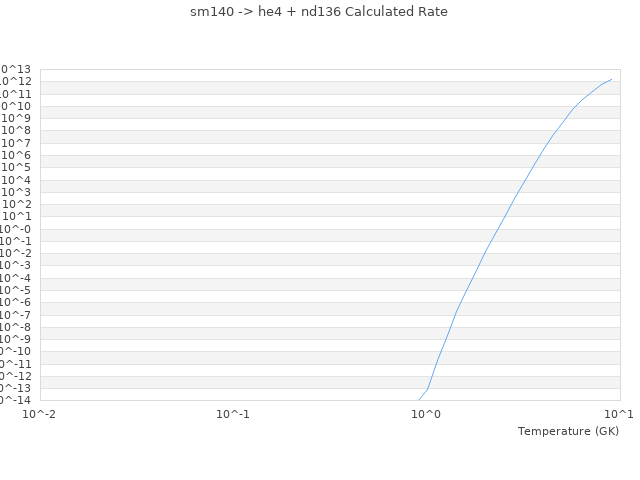

| View Graph | |
