Datapoints for n + nd137 -> he4 + ce134
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.398514e+05 |
| 0.15 | 4.230281e+05 |
| 0.2 | 4.209173e+05 |
| 0.3 | 4.268011e+05 |
| 0.4 | 4.344047e+05 |
| 0.5 | 4.411086e+05 |
| 0.6 | 4.468585e+05 |
| 0.7 | 4.519887e+05 |
| 0.8 | 4.568321e+05 |
| 0.9 | 4.616540e+05 |
| 1 | 4.666532e+05 |
| 1.5 | 4.983510e+05 |
| 2 | 5.465479e+05 |
| 2.5 | 6.155491e+05 |
| 3 | 7.096194e+05 |
| 3.5 | 8.344257e+05 |
| 4 | 9.976669e+05 |
| 4.5 | 1.209654e+06 |
| 5 | 1.484035e+06 |
| 6 | 2.297231e+06 |
| 7 | 3.657275e+06 |
| 8 | 5.937274e+06 |
| 9 | 9.766003e+06 |
| 10 | 1.619659e+07 |

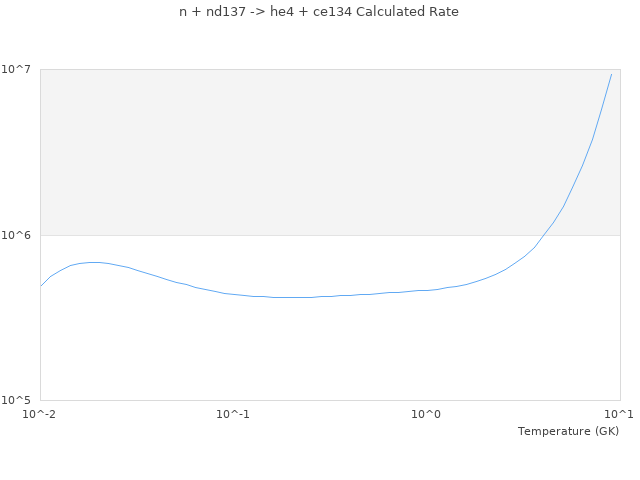

| View Graph | |
