Datapoints for sm147 -> he4 + nd143
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.341731e-191 |
| 0.15 | 2.064618e-128 |
| 0.2 | 2.625684e-94 |
| 0.3 | 6.093171e-59 |
| 0.4 | 3.189485e-41 |
| 0.5 | 8.087520e-31 |
| 0.6 | 4.525941e-24 |
| 0.7 | 2.249273e-19 |
| 0.8 | 6.330405e-16 |
| 0.9 | 2.795981e-13 |
| 1 | 3.532900e-11 |
| 1.5 | 9.665093e-05 |
| 2 | 3.986869e-01 |
| 2.5 | 1.321478e+02 |
| 3 | 1.087087e+04 |
| 3.5 | 3.473400e+05 |
| 4 | 5.438531e+06 |
| 4.5 | 4.839781e+07 |
| 5 | 2.728896e+08 |
| 6 | 3.077888e+09 |
| 7 | 1.348271e+10 |
| 8 | 3.475139e+10 |
| 9 | 7.324755e+10 |
| 10 | 1.647834e+11 |

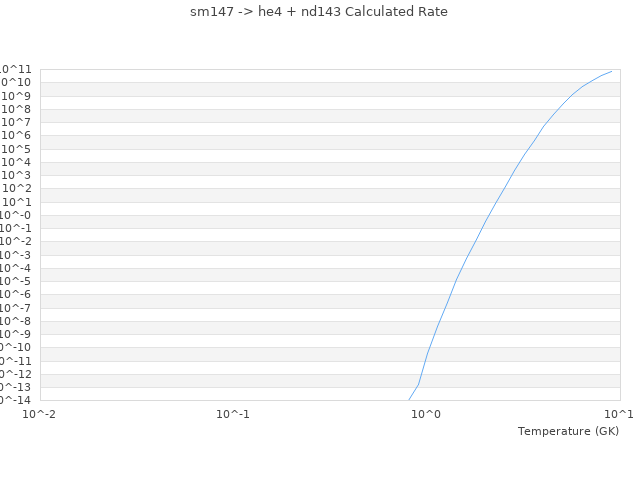

| View Graph | |
