Datapoints for p + nd144 -> pm145
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.883061e-63 |
| 0.15 | 1.777673e-41 |
| 0.2 | 3.651508e-31 |
| 0.3 | 1.192274e-21 |
| 0.4 | 2.343188e-17 |
| 0.5 | 6.555760e-15 |
| 0.6 | 2.884159e-13 |
| 0.7 | 5.044673e-12 |
| 0.8 | 5.287859e-11 |
| 0.9 | 4.053718e-10 |
| 1 | 2.520548e-09 |
| 1.5 | 3.872142e-06 |
| 2 | 8.573322e-04 |
| 2.5 | 4.421250e-02 |
| 3 | 7.005585e-01 |
| 3.5 | 4.332334e+00 |
| 4 | 1.290131e+01 |
| 4.5 | 2.218622e+01 |
| 5 | 2.574329e+01 |
| 6 | 1.777623e+01 |
| 7 | 9.945176e+00 |
| 8 | 8.469070e+00 |
| 9 | 1.765864e+01 |
| 10 | 1.297839e+02 |

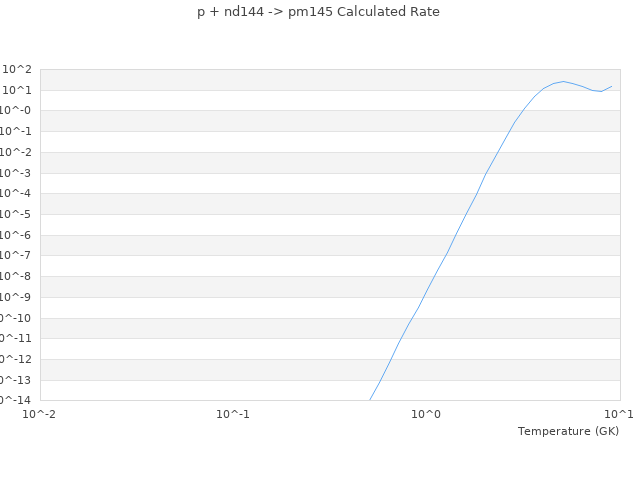

| View Graph | |
