Datapoints for p + nd146 -> pm147
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.414627e-62 |
| 0.15 | 5.369312e-41 |
| 0.2 | 9.434630e-31 |
| 0.3 | 3.226865e-21 |
| 0.4 | 6.962841e-17 |
| 0.5 | 2.027654e-14 |
| 0.6 | 8.777559e-13 |
| 0.7 | 1.445962e-11 |
| 0.8 | 1.383658e-10 |
| 0.9 | 9.481643e-10 |
| 1 | 5.199829e-09 |
| 1.5 | 4.064693e-06 |
| 2 | 5.024397e-04 |
| 2.5 | 1.690247e-02 |
| 3 | 2.022530e-01 |
| 3.5 | 1.065155e+00 |
| 4 | 2.961873e+00 |
| 4.5 | 5.082540e+00 |
| 5 | 6.148889e+00 |
| 6 | 4.889153e+00 |
| 7 | 3.083878e+00 |
| 8 | 2.649999e+00 |
| 9 | 4.668107e+00 |
| 10 | 2.307401e+01 |

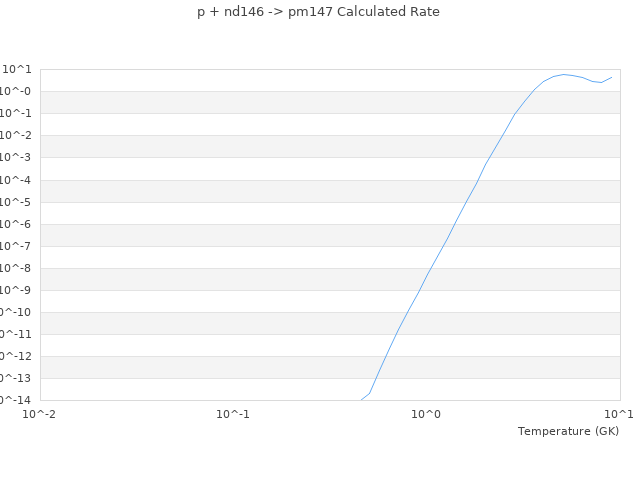

| View Graph | |
