Datapoints for n + nd150 -> he4 + ce147
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.975603e-10 |
| 0.15 | 4.119357e-10 |
| 0.2 | 4.896356e-10 |
| 0.3 | 5.211053e-10 |
| 0.4 | 6.028768e-10 |
| 0.5 | 8.128915e-10 |
| 0.6 | 1.244259e-09 |
| 0.7 | 2.091824e-09 |
| 0.8 | 3.760072e-09 |
| 0.9 | 7.081607e-09 |
| 1 | 1.376653e-08 |
| 1.5 | 4.535191e-07 |
| 2 | 1.368818e-05 |
| 2.5 | 3.144461e-04 |
| 3 | 5.288851e-03 |
| 3.5 | 6.550201e-02 |
| 4 | 6.091115e-01 |
| 4.5 | 4.351431e+00 |
| 5 | 2.442557e+01 |
| 6 | 4.049900e+02 |
| 7 | 3.202437e+03 |
| 8 | 1.352910e+04 |
| 9 | 3.342212e+04 |
| 10 | 5.191641e+04 |

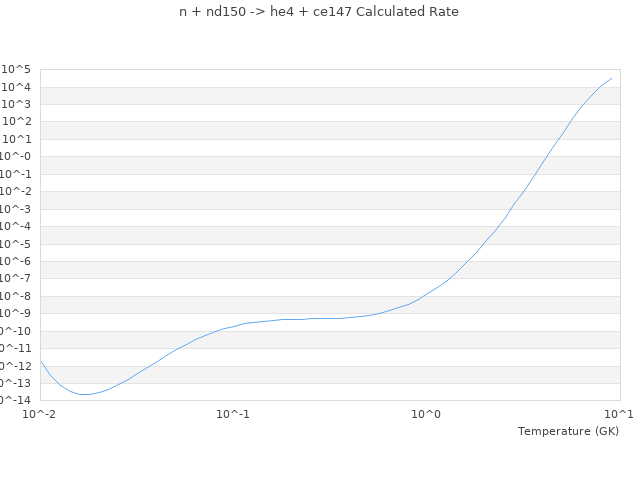

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
