Datapoints for nd166 -> n + nd165
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.875982e-190 |
| 0.15 | 1.809152e-121 |
| 0.2 | 4.243073e-87 |
| 0.3 | 1.098962e-52 |
| 0.4 | 1.894290e-35 |
| 0.5 | 4.337094e-25 |
| 0.6 | 3.595387e-18 |
| 0.7 | 3.207362e-13 |
| 0.8 | 1.679742e-09 |
| 0.9 | 1.326006e-06 |
| 1 | 2.778848e-04 |
| 1.5 | 2.681859e+03 |
| 2 | 8.393056e+06 |
| 2.5 | 1.009147e+09 |
| 3 | 2.306536e+10 |
| 3.5 | 1.996788e+11 |
| 4 | 9.265476e+11 |
| 4.5 | 2.799438e+12 |
| 5 | 6.196514e+12 |
| 6 | 1.577642e+13 |
| 7 | 2.199036e+13 |
| 8 | 2.023158e+13 |
| 9 | 1.367828e+13 |
| 10 | 7.265373e+12 |

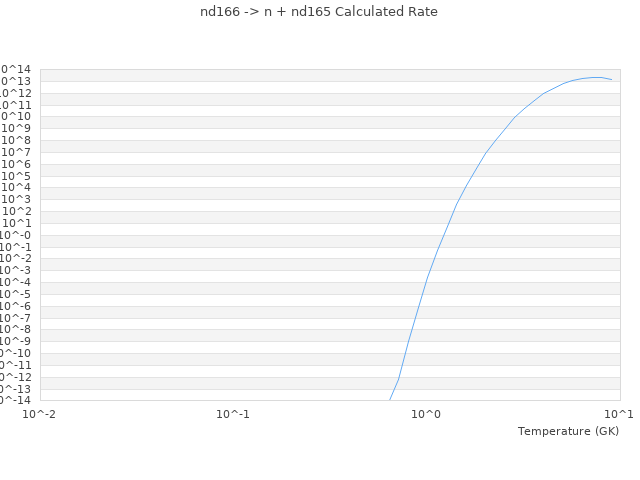

| View Graph | |
