Datapoints for nd169 -> n + nd168
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.528646e-94 |
| 0.15 | 3.111734e-58 |
| 0.2 | 2.568453e-40 |
| 0.3 | 2.749698e-22 |
| 0.4 | 3.426743e-13 |
| 0.5 | 1.091655e-07 |
| 0.6 | 5.437221e-04 |
| 0.7 | 2.483589e-01 |
| 0.8 | 2.527742e+01 |
| 0.9 | 9.403644e+02 |
| 1 | 1.722696e+04 |
| 1.5 | 1.154361e+08 |
| 2 | 9.702864e+09 |
| 2.5 | 1.333521e+11 |
| 3 | 7.151489e+11 |
| 3.5 | 2.184473e+12 |
| 4 | 4.603548e+12 |
| 4.5 | 7.455559e+12 |
| 5 | 9.907781e+12 |
| 6 | 1.129108e+13 |
| 7 | 8.342724e+12 |
| 8 | 4.435882e+12 |
| 9 | 1.802052e+12 |
| 10 | 5.806210e+11 |

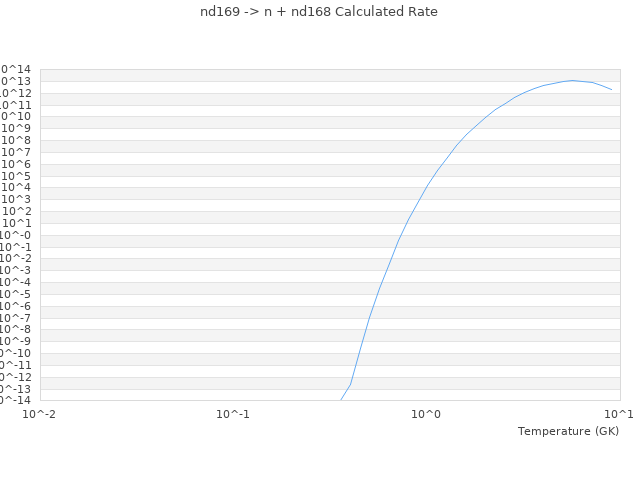

| View Graph | |
