Datapoints for pm169 -> p + nd168
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 4.060586e-229 |
| 0.4 | 5.507223e-169 |
| 0.5 | 4.895927e-134 |
| 0.6 | 2.775485e-111 |
| 0.7 | 2.872435e-95 |
| 0.8 | 2.485812e-83 |
| 0.9 | 4.929357e-74 |
| 1 | 1.542593e-66 |
| 1.5 | 5.052694e-43 |
| 2 | 6.687029e-30 |
| 2.5 | 2.965601e-21 |
| 3 | 3.558353e-15 |
| 3.5 | 8.498881e-11 |
| 4 | 1.257090e-07 |
| 4.5 | 2.429864e-05 |
| 5 | 1.052567e-03 |
| 6 | 1.069418e-01 |
| 7 | 1.514556e+00 |
| 8 | 1.618403e+01 |
| 9 | 4.494356e+02 |
| 10 | 8.288240e+04 |

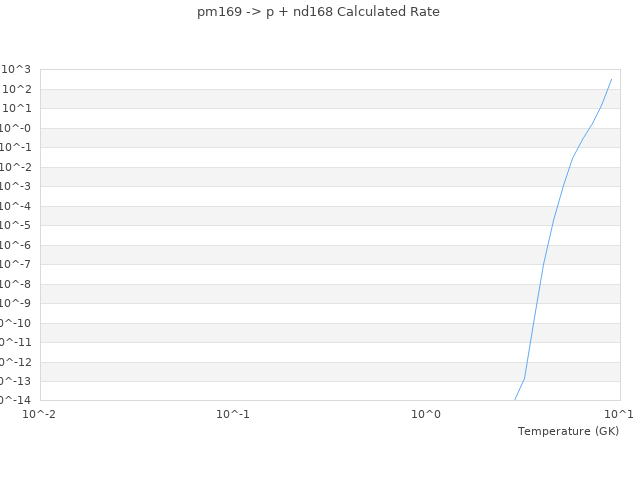

| View Graph | |
