Datapoints for p + nd168 -> pm169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.794334e-120 |
| 0.15 | 5.653715e-73 |
| 0.2 | 5.889156e-50 |
| 0.3 | 1.177166e-29 |
| 0.4 | 9.277391e-22 |
| 0.5 | 3.483008e-18 |
| 0.6 | 2.276918e-16 |
| 0.7 | 2.516994e-15 |
| 0.8 | 1.252838e-14 |
| 0.9 | 4.403150e-14 |
| 1 | 1.351477e-13 |
| 1.5 | 3.652618e-11 |
| 2 | 1.222466e-08 |
| 2.5 | 2.202671e-06 |
| 3 | 1.378625e-04 |
| 3.5 | 2.772985e-03 |
| 4 | 1.973879e-02 |
| 4.5 | 5.886574e-02 |
| 5 | 8.911241e-02 |
| 6 | 5.703354e-02 |
| 7 | 2.088104e-02 |
| 8 | 1.400374e-02 |
| 9 | 4.422048e-02 |
| 10 | 1.408653e+00 |

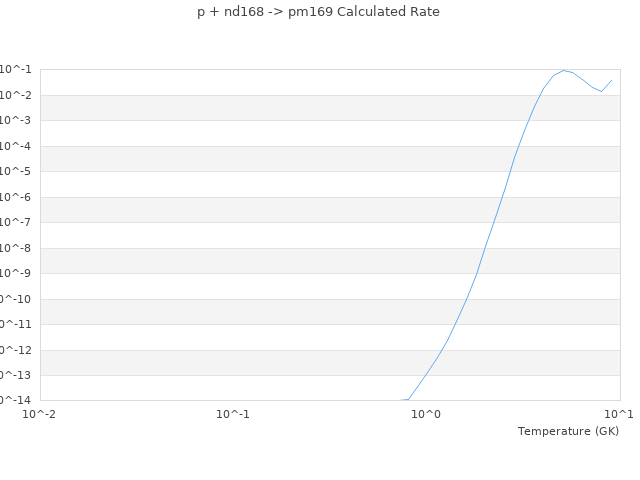

| View Graph | |
