Datapoints for sm172 -> he4 + nd168
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.589927e-288 |
| 0.3 | 4.494569e-194 |
| 0.4 | 6.586661e-145 |
| 0.5 | 7.394836e-115 |
| 0.6 | 1.157399e-94 |
| 0.7 | 3.347743e-80 |
| 0.8 | 2.328901e-69 |
| 0.9 | 6.106965e-61 |
| 1 | 3.207520e-54 |
| 1.5 | 3.896515e-34 |
| 2 | 4.917277e-24 |
| 2.5 | 7.904786e-18 |
| 3 | 1.506413e-13 |
| 3.5 | 2.228481e-10 |
| 4 | 6.382605e-08 |
| 4.5 | 5.828588e-06 |
| 5 | 2.285785e-04 |
| 6 | 5.627267e-02 |
| 7 | 2.418592e+00 |
| 8 | 3.018833e+01 |
| 9 | 1.507366e+02 |
| 10 | 3.760847e+02 |

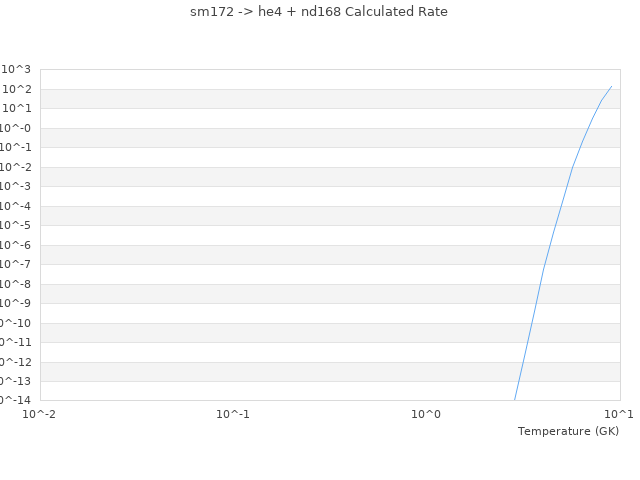

| View Graph | |
