Datapoints for nd170 -> n + nd169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.379677e-172 |
| 0.15 | 1.614128e-109 |
| 0.2 | 3.224074e-78 |
| 0.3 | 6.543830e-47 |
| 0.4 | 2.953653e-31 |
| 0.5 | 7.304783e-22 |
| 0.6 | 1.339041e-15 |
| 0.7 | 3.996486e-11 |
| 0.8 | 9.097665e-08 |
| 0.9 | 3.723897e-05 |
| 1 | 4.584151e-03 |
| 1.5 | 8.546081e+03 |
| 2 | 1.127183e+07 |
| 2.5 | 7.871666e+08 |
| 3 | 1.230021e+10 |
| 3.5 | 7.998597e+10 |
| 4 | 2.958456e+11 |
| 4.5 | 7.415894e+11 |
| 5 | 1.401195e+12 |
| 6 | 2.757021e+12 |
| 7 | 3.134499e+12 |
| 8 | 2.443719e+12 |
| 9 | 1.442832e+12 |
| 10 | 6.867356e+11 |

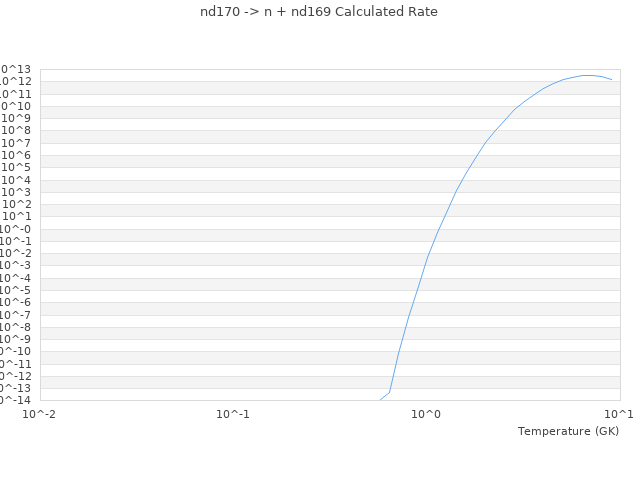

| View Graph | |
