Datapoints for pm170 -> p + nd169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 2.337299e-236 |
| 0.4 | 2.664406e-174 |
| 0.5 | 3.198569e-138 |
| 0.6 | 9.942188e-115 |
| 0.7 | 3.396921e-98 |
| 0.8 | 7.102036e-86 |
| 0.9 | 2.771692e-76 |
| 1 | 1.481991e-68 |
| 1.5 | 2.352651e-44 |
| 2 | 6.831813e-31 |
| 2.5 | 4.922765e-22 |
| 3 | 8.303723e-16 |
| 3.5 | 2.571855e-11 |
| 4 | 4.693846e-08 |
| 4.5 | 1.083395e-05 |
| 5 | 5.478119e-04 |
| 6 | 7.253072e-02 |
| 7 | 1.290593e+00 |
| 8 | 1.697767e+01 |
| 9 | 5.742477e+02 |
| 10 | 1.284210e+05 |

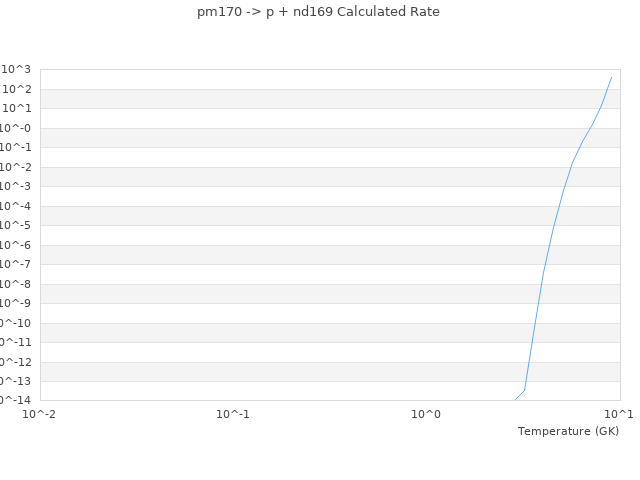

| View Graph | |
