Datapoints for p + nd169 -> pm170
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.958738e-120 |
| 0.15 | 1.081439e-72 |
| 0.2 | 1.218531e-49 |
| 0.3 | 2.317483e-29 |
| 0.4 | 1.615058e-21 |
| 0.5 | 5.325921e-18 |
| 0.6 | 3.087640e-16 |
| 0.7 | 3.067061e-15 |
| 0.8 | 1.389845e-14 |
| 0.9 | 4.500028e-14 |
| 1 | 1.285796e-13 |
| 1.5 | 2.724110e-11 |
| 2 | 8.045142e-09 |
| 2.5 | 1.363594e-06 |
| 3 | 8.334364e-05 |
| 3.5 | 1.675747e-03 |
| 4 | 1.210848e-02 |
| 4.5 | 3.704605e-02 |
| 5 | 5.797609e-02 |
| 6 | 4.030096e-02 |
| 7 | 1.627623e-02 |
| 8 | 1.218844e-02 |
| 9 | 4.345122e-02 |
| 10 | 1.579617e+00 |

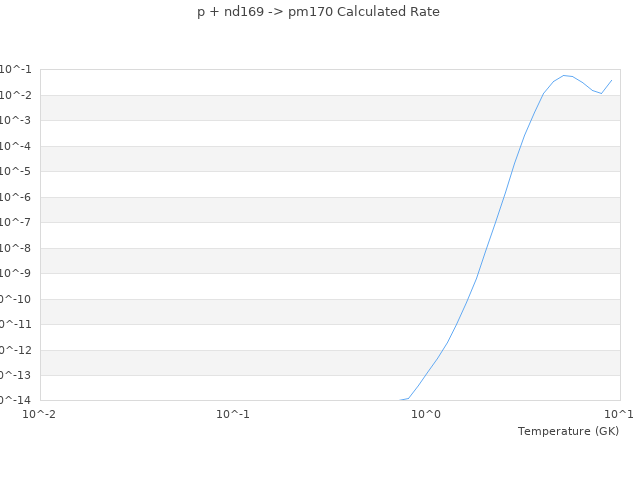

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
