Datapoints for sm173 -> he4 + nd169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 9.730778e-297 |
| 0.3 | 1.685591e-199 |
| 0.4 | 6.726459e-149 |
| 0.5 | 5.650787e-118 |
| 0.6 | 3.397084e-97 |
| 0.7 | 2.552486e-82 |
| 0.8 | 3.594717e-71 |
| 0.9 | 1.612289e-62 |
| 1 | 1.285962e-55 |
| 1.5 | 4.879979e-35 |
| 2 | 9.717059e-25 |
| 2.5 | 1.950248e-18 |
| 3 | 4.246431e-14 |
| 3.5 | 6.951378e-11 |
| 4 | 2.185227e-08 |
| 4.5 | 2.194173e-06 |
| 5 | 9.511932e-05 |
| 6 | 2.908998e-02 |
| 7 | 1.572391e+00 |
| 8 | 2.459702e+01 |
| 9 | 1.510196e+02 |
| 10 | 4.483548e+02 |

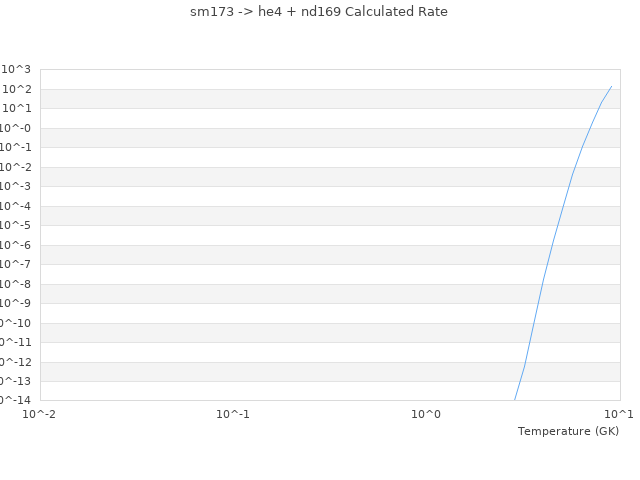

| View Graph | |
