Datapoints for he4 + nd169 -> n + sm172
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 2.655788e-230 |
| 0.2 | 4.244246e-176 |
| 0.3 | 4.203220e-117 |
| 0.4 | 3.428179e-86 |
| 0.5 | 1.462767e-67 |
| 0.6 | 2.543372e-55 |
| 0.7 | 8.778179e-47 |
| 0.8 | 1.485752e-40 |
| 0.9 | 7.580577e-36 |
| 1 | 3.495251e-32 |
| 1.5 | 8.702473e-22 |
| 2 | 9.255564e-17 |
| 2.5 | 1.497390e-13 |
| 3 | 3.767473e-11 |
| 3.5 | 3.393669e-09 |
| 4 | 1.553264e-07 |
| 4.5 | 4.271942e-06 |
| 5 | 7.735854e-05 |
| 6 | 8.935846e-03 |
| 7 | 3.220404e-01 |
| 8 | 4.425614e+00 |
| 9 | 2.730773e+01 |
| 10 | 8.718867e+01 |

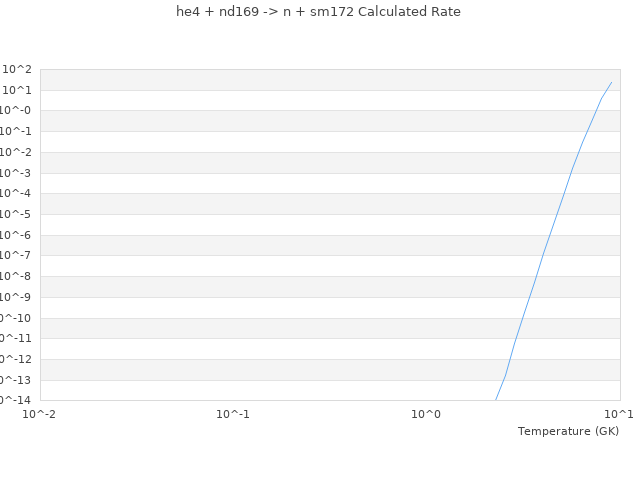

| View Graph | |
