Datapoints for p + nd170 -> pm171
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.723043e-121 |
| 0.15 | 3.019256e-73 |
| 0.2 | 3.840826e-50 |
| 0.3 | 9.057466e-30 |
| 0.4 | 7.560078e-22 |
| 0.5 | 2.902993e-18 |
| 0.6 | 1.916299e-16 |
| 0.7 | 2.128748e-15 |
| 0.8 | 1.063023e-14 |
| 0.9 | 3.746788e-14 |
| 1 | 1.153489e-13 |
| 1.5 | 3.177145e-11 |
| 2 | 1.084347e-08 |
| 2.5 | 1.982034e-06 |
| 3 | 1.249836e-04 |
| 3.5 | 2.516408e-03 |
| 4 | 1.783463e-02 |
| 4.5 | 5.274724e-02 |
| 5 | 7.898644e-02 |
| 6 | 4.933322e-02 |
| 7 | 1.769001e-02 |
| 8 | 1.174366e-02 |
| 9 | 3.730504e-02 |
| 10 | 1.220133e+00 |

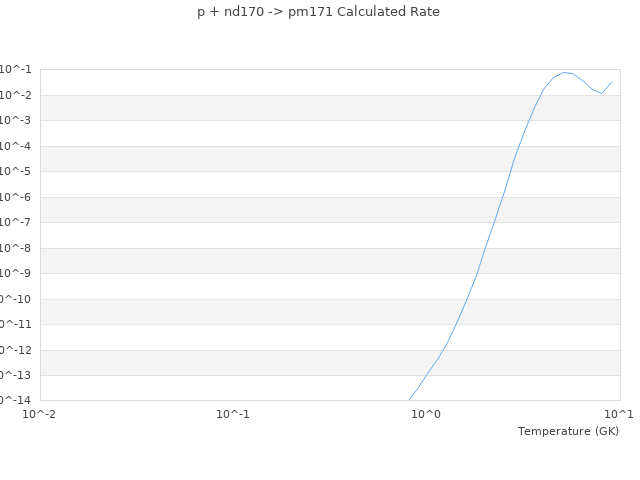

| View Graph | |
