Datapoints for sm174 -> he4 + nd170
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.407096e-305 |
| 0.3 | 1.859906e-205 |
| 0.4 | 1.901769e-153 |
| 0.5 | 1.094429e-121 |
| 0.6 | 2.373582e-100 |
| 0.7 | 4.500039e-85 |
| 0.8 | 1.284417e-73 |
| 0.9 | 1.010845e-64 |
| 1 | 1.279911e-57 |
| 1.5 | 2.185685e-36 |
| 2 | 1.033299e-25 |
| 2.5 | 3.653844e-19 |
| 3 | 1.171861e-14 |
| 3.5 | 2.502281e-11 |
| 4 | 9.398780e-09 |
| 4.5 | 1.056305e-06 |
| 5 | 4.879286e-05 |
| 6 | 1.530662e-02 |
| 7 | 7.831640e-01 |
| 8 | 1.121840e+01 |
| 9 | 6.310143e+01 |
| 10 | 1.760426e+02 |

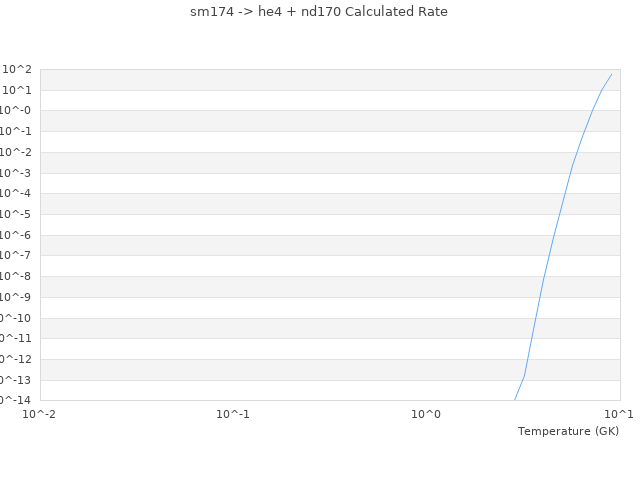

| View Graph | |
