Datapoints for p + nd171 -> pm172
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.450326e-121 |
| 0.15 | 3.695788e-73 |
| 0.2 | 5.090554e-50 |
| 0.3 | 1.208340e-29 |
| 0.4 | 9.522323e-22 |
| 0.5 | 3.402777e-18 |
| 0.6 | 2.090143e-16 |
| 0.7 | 2.170242e-15 |
| 0.8 | 1.018880e-14 |
| 0.9 | 3.396422e-14 |
| 1 | 9.945115e-14 |
| 1.5 | 2.283209e-11 |
| 2 | 7.029690e-09 |
| 2.5 | 1.216710e-06 |
| 3 | 7.497375e-05 |
| 3.5 | 1.507117e-03 |
| 4 | 1.082807e-02 |
| 4.5 | 3.282678e-02 |
| 5 | 5.080615e-02 |
| 6 | 3.449154e-02 |
| 7 | 1.364921e-02 |
| 8 | 1.009273e-02 |
| 9 | 3.591373e-02 |
| 10 | 1.320279e+00 |

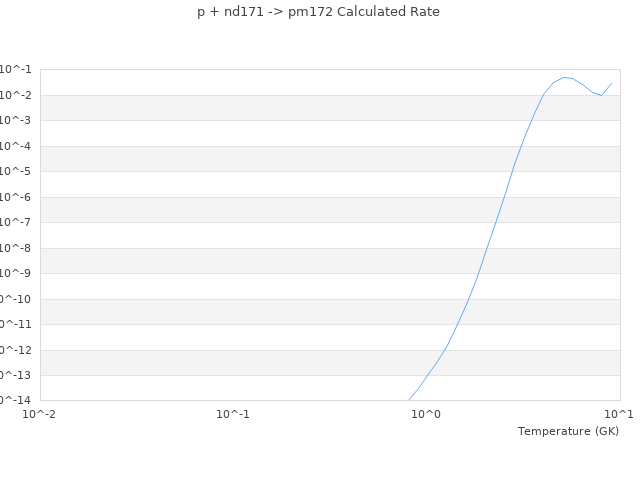

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
