Datapoints for sm175 -> he4 + nd171
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-315 |
| 0.3 | 8.513045e-212 |
| 0.4 | 3.538415e-158 |
| 0.5 | 1.941097e-125 |
| 0.6 | 1.903855e-103 |
| 0.7 | 1.055512e-87 |
| 0.8 | 6.675735e-76 |
| 0.9 | 9.653416e-67 |
| 1 | 1.967831e-59 |
| 1.5 | 1.262692e-37 |
| 2 | 1.041747e-26 |
| 2.5 | 4.903818e-20 |
| 3 | 1.877865e-15 |
| 3.5 | 4.579002e-12 |
| 4 | 1.931604e-09 |
| 4.5 | 2.427733e-07 |
| 5 | 1.255261e-05 |
| 6 | 4.970770e-03 |
| 7 | 3.225780e-01 |
| 8 | 5.817052e+00 |
| 9 | 4.034400e+01 |
| 10 | 1.342806e+02 |

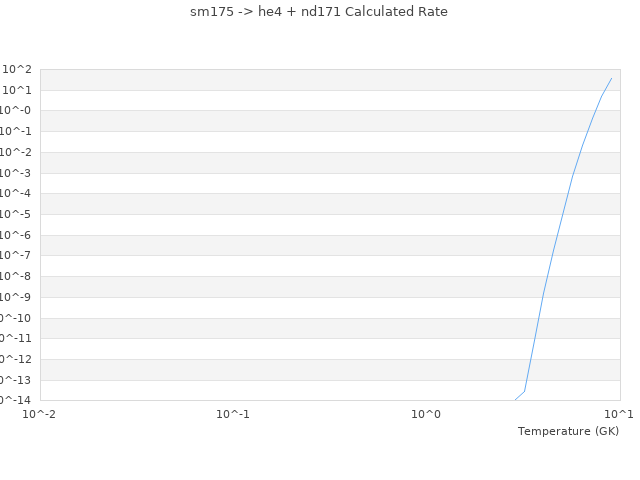

| View Graph | |
