Datapoints for he4 + nd171 -> n + sm174
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 3.729900e-231 |
| 0.2 | 9.407869e-177 |
| 0.3 | 1.567810e-117 |
| 0.4 | 1.706288e-86 |
| 0.5 | 8.732205e-68 |
| 0.6 | 1.718219e-55 |
| 0.7 | 6.479281e-47 |
| 0.8 | 1.171140e-40 |
| 0.9 | 6.282414e-36 |
| 1 | 3.011924e-32 |
| 1.5 | 8.333910e-22 |
| 2 | 9.225960e-17 |
| 2.5 | 1.517234e-13 |
| 3 | 3.841395e-11 |
| 3.5 | 3.465821e-09 |
| 4 | 1.585345e-07 |
| 4.5 | 4.353190e-06 |
| 5 | 7.867150e-05 |
| 6 | 9.049680e-03 |
| 7 | 3.249242e-01 |
| 8 | 4.450925e+00 |
| 9 | 2.738618e+01 |
| 10 | 8.720570e+01 |

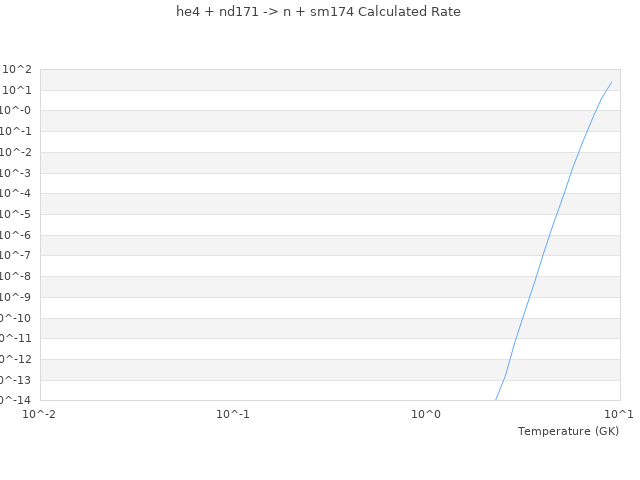

| View Graph | |
