Datapoints for nd173 -> n + nd172
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.375665e-83 |
| 0.15 | 2.667603e-51 |
| 0.2 | 1.940208e-35 |
| 0.3 | 1.714496e-19 |
| 0.4 | 1.899413e-11 |
| 0.5 | 1.422683e-06 |
| 0.6 | 2.732641e-03 |
| 0.7 | 6.407269e-01 |
| 0.8 | 4.006557e+01 |
| 0.9 | 1.032325e+03 |
| 1 | 1.423784e+04 |
| 1.5 | 4.418532e+07 |
| 2 | 2.696162e+09 |
| 2.5 | 3.110030e+10 |
| 3 | 1.474810e+11 |
| 3.5 | 4.057910e+11 |
| 4 | 7.748005e+11 |
| 4.5 | 1.138646e+12 |
| 5 | 1.374313e+12 |
| 6 | 1.301217e+12 |
| 7 | 8.158948e+11 |
| 8 | 3.814766e+11 |
| 9 | 1.430022e+11 |
| 10 | 4.508259e+10 |

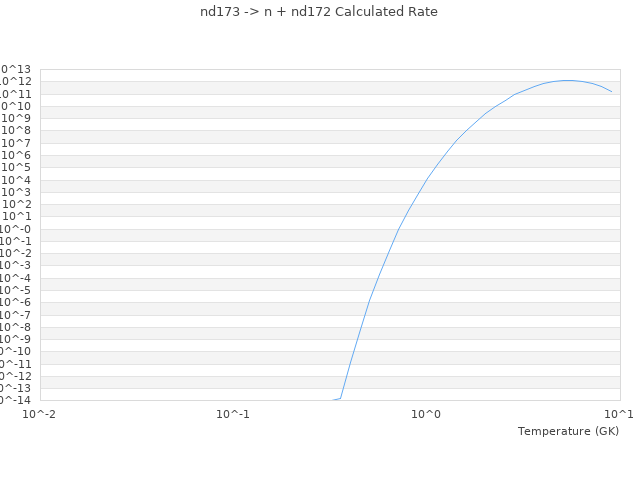

| View Graph | |
