Datapoints for p + nd172 -> pm173
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.788486e-121 |
| 0.15 | 1.739064e-73 |
| 0.2 | 2.660301e-50 |
| 0.3 | 7.329874e-30 |
| 0.4 | 6.470251e-22 |
| 0.5 | 2.541646e-18 |
| 0.6 | 1.694434e-16 |
| 0.7 | 1.890953e-15 |
| 0.8 | 9.465621e-15 |
| 0.9 | 3.341618e-14 |
| 1 | 1.030144e-13 |
| 1.5 | 2.858431e-11 |
| 2 | 9.819153e-09 |
| 2.5 | 1.798629e-06 |
| 3 | 1.130607e-04 |
| 3.5 | 2.258297e-03 |
| 4 | 1.581849e-02 |
| 4.5 | 4.611814e-02 |
| 5 | 6.797793e-02 |
| 6 | 4.113150e-02 |
| 7 | 1.437027e-02 |
| 8 | 9.402074e-03 |
| 9 | 2.990909e-02 |
| 10 | 9.988889e-01 |

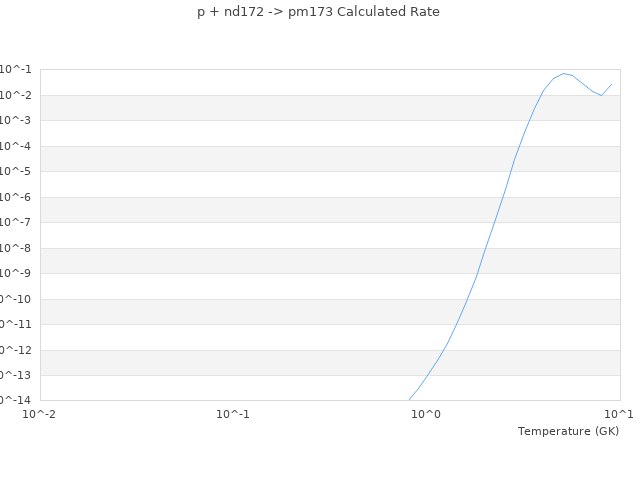

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
