Datapoints for n + pm173 -> p + nd173
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-316 |
| 0.3 | 1.973275e-211 |
| 0.4 | 2.073369e-159 |
| 0.5 | 2.159150e-128 |
| 0.6 | 9.837117e-108 |
| 0.7 | 6.364884e-93 |
| 0.8 | 9.908300e-82 |
| 0.9 | 6.212203e-73 |
| 1 | 8.348028e-66 |
| 1.5 | 1.599427e-43 |
| 2 | 1.797158e-31 |
| 2.5 | 8.533579e-24 |
| 3 | 1.673156e-18 |
| 3.5 | 1.078639e-14 |
| 4 | 7.042836e-12 |
| 4.5 | 9.279059e-10 |
| 5 | 3.908962e-08 |
| 6 | 7.722987e-06 |
| 7 | 3.192990e-04 |
| 8 | 8.271085e-03 |
| 9 | 2.810504e-01 |
| 10 | 2.119942e+01 |

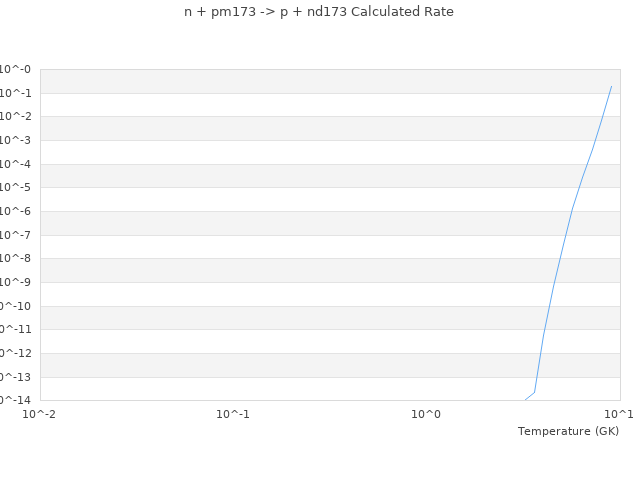

| View Graph | |
