Datapoints for nd176 -> n + nd175
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.426343e-144 |
| 0.15 | 2.329627e-91 |
| 0.2 | 9.939414e-65 |
| 0.3 | 4.580216e-38 |
| 0.4 | 1.051944e-24 |
| 0.5 | 1.148506e-16 |
| 0.6 | 2.723805e-11 |
| 0.7 | 1.936323e-07 |
| 0.8 | 1.532666e-04 |
| 0.9 | 2.800416e-02 |
| 1 | 1.829467e+00 |
| 1.5 | 5.543012e+05 |
| 2 | 3.129412e+08 |
| 2.5 | 1.335818e+10 |
| 3 | 1.501619e+11 |
| 3.5 | 7.649644e+11 |
| 4 | 2.328263e+12 |
| 4.5 | 4.952742e+12 |
| 5 | 8.108241e+12 |
| 6 | 1.249034e+13 |
| 7 | 1.156893e+13 |
| 8 | 7.584105e+12 |
| 9 | 3.875626e+12 |
| 10 | 1.642363e+12 |

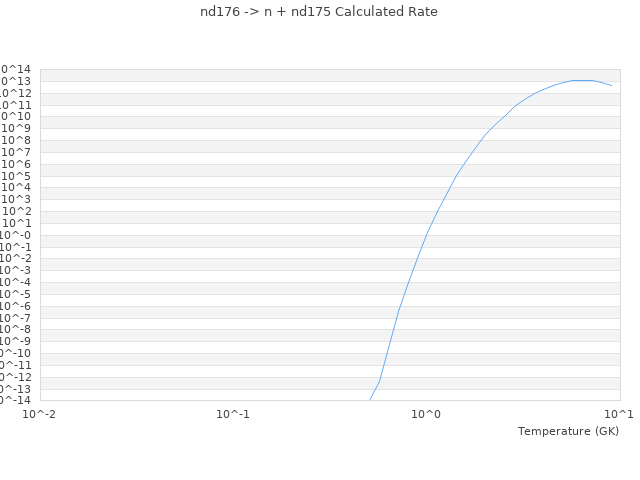

| View Graph | |
