Datapoints for n + nd175 -> nd176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.086944e+05 |
| 0.15 | 1.168298e+05 |
| 0.2 | 1.125720e+05 |
| 0.3 | 9.818130e+04 |
| 0.4 | 8.636394e+04 |
| 0.5 | 7.788813e+04 |
| 0.6 | 7.177682e+04 |
| 0.7 | 6.722625e+04 |
| 0.8 | 6.370160e+04 |
| 0.9 | 6.085515e+04 |
| 1 | 5.845797e+04 |
| 1.5 | 4.924592e+04 |
| 2 | 4.081314e+04 |
| 2.5 | 3.222495e+04 |
| 3 | 2.409246e+04 |
| 3.5 | 1.708351e+04 |
| 4 | 1.153469e+04 |
| 4.5 | 7.449224e+03 |
| 5 | 4.621382e+03 |
| 6 | 1.601296e+03 |
| 7 | 4.929332e+02 |
| 8 | 1.376969e+02 |
| 9 | 3.549301e+01 |
| 10 | 8.555434e+00 |

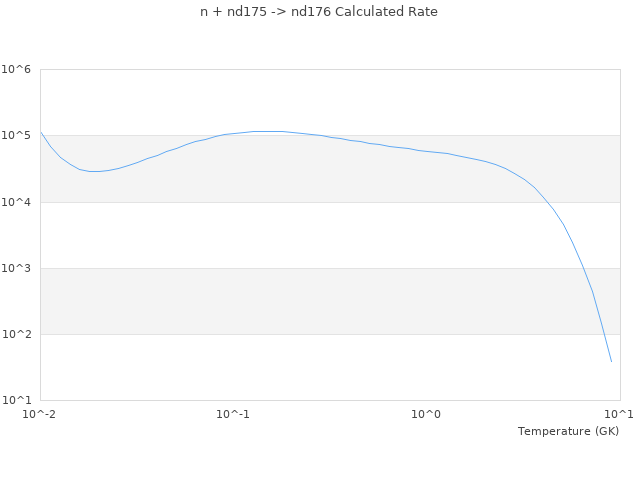

| View Graph | |
