Datapoints for p + nd175 -> pm176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.432823e-122 |
| 0.15 | 7.292917e-74 |
| 0.2 | 1.475581e-50 |
| 0.3 | 4.958032e-30 |
| 0.4 | 4.537551e-22 |
| 0.5 | 1.759995e-18 |
| 0.6 | 1.141324e-16 |
| 0.7 | 1.235106e-15 |
| 0.8 | 6.003290e-15 |
| 0.9 | 2.063836e-14 |
| 1 | 6.216317e-14 |
| 1.5 | 1.602663e-11 |
| 2 | 5.348893e-09 |
| 2.5 | 9.721692e-07 |
| 3 | 6.123974e-05 |
| 3.5 | 1.231998e-03 |
| 4 | 8.718402e-03 |
| 4.5 | 2.574456e-02 |
| 5 | 3.853769e-02 |
| 6 | 2.429259e-02 |
| 7 | 9.000165e-03 |
| 8 | 6.389176e-03 |
| 9 | 2.266742e-02 |
| 10 | 8.712062e-01 |

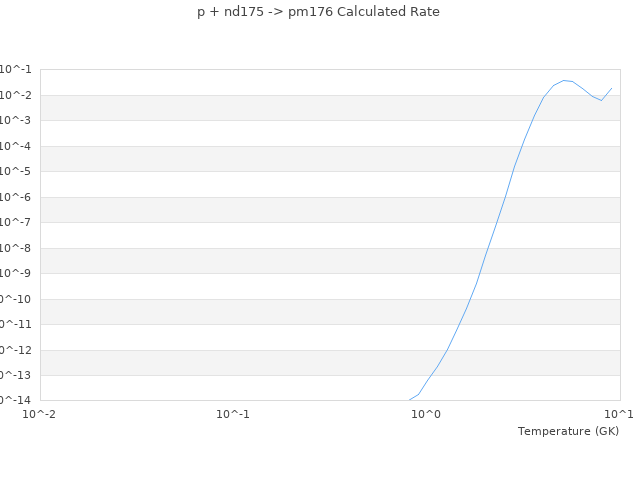

| View Graph | |
