Datapoints for nd177 -> n + nd176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.643556e-62 |
| 0.15 | 1.516862e-37 |
| 0.2 | 2.882738e-25 |
| 0.3 | 6.975346e-13 |
| 0.4 | 1.321370e-06 |
| 0.5 | 8.765743e-03 |
| 0.6 | 3.377683e+00 |
| 0.7 | 2.528033e+02 |
| 0.8 | 6.734526e+03 |
| 0.9 | 8.951304e+04 |
| 1 | 7.276459e+05 |
| 1.5 | 4.619115e+08 |
| 2 | 1.261660e+10 |
| 2.5 | 8.880279e+10 |
| 3 | 3.000044e+11 |
| 3.5 | 6.430482e+11 |
| 4 | 1.012541e+12 |
| 4.5 | 1.275972e+12 |
| 5 | 1.358476e+12 |
| 6 | 1.062368e+12 |
| 7 | 5.815417e+11 |
| 8 | 2.467463e+11 |
| 9 | 8.641746e+10 |
| 10 | 2.604721e+10 |

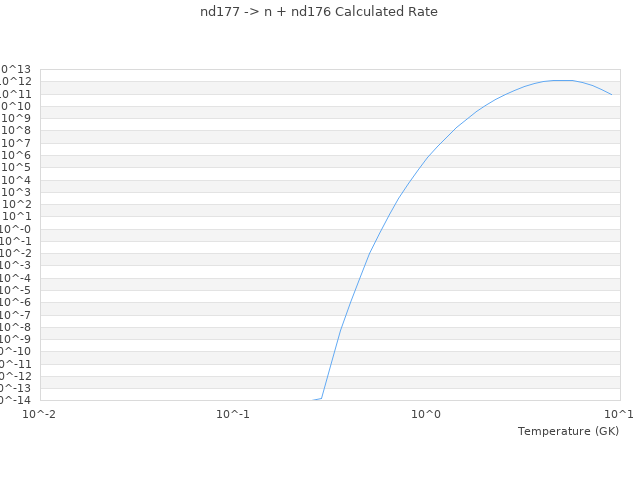

| View Graph | |
