Datapoints for p + nd176 -> pm177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.802815e-122 |
| 0.15 | 4.548337e-74 |
| 0.2 | 1.073420e-50 |
| 0.3 | 4.111137e-30 |
| 0.4 | 3.953605e-22 |
| 0.5 | 1.570321e-18 |
| 0.6 | 1.033261e-16 |
| 0.7 | 1.130890e-15 |
| 0.8 | 5.553896e-15 |
| 0.9 | 1.928985e-14 |
| 1 | 5.870982e-14 |
| 1.5 | 1.597603e-11 |
| 2 | 5.604363e-09 |
| 2.5 | 1.059709e-06 |
| 3 | 6.862464e-05 |
| 3.5 | 1.402842e-03 |
| 4 | 9.981411e-03 |
| 4.5 | 2.935991e-02 |
| 5 | 4.342954e-02 |
| 6 | 2.622038e-02 |
| 7 | 9.129579e-03 |
| 8 | 6.017028e-03 |
| 9 | 1.968399e-02 |
| 10 | 6.958430e-01 |

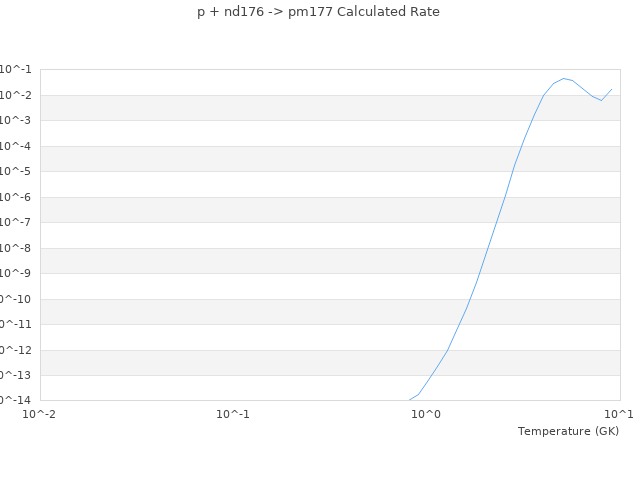

| View Graph | |
