Datapoints for p + nd176 -> n + pm176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.947447e-64 |
| 0.15 | 1.055751e-41 |
| 0.2 | 6.755113e-31 |
| 0.3 | 4.258657e-21 |
| 0.4 | 8.433575e-17 |
| 0.5 | 2.033491e-14 |
| 0.6 | 7.537160e-13 |
| 0.7 | 1.131630e-11 |
| 0.8 | 1.050000e-10 |
| 0.9 | 7.360781e-10 |
| 1 | 4.315302e-09 |
| 1.5 | 7.004331e-06 |
| 2 | 2.334610e-03 |
| 2.5 | 2.146944e-01 |
| 3 | 6.558998e+00 |
| 3.5 | 8.063762e+01 |
| 4 | 4.796810e+02 |
| 4.5 | 1.631884e+03 |
| 5 | 3.679448e+03 |
| 6 | 8.947841e+03 |
| 7 | 1.591284e+04 |
| 8 | 3.887841e+04 |
| 9 | 2.110972e+05 |
| 10 | 3.694829e+06 |

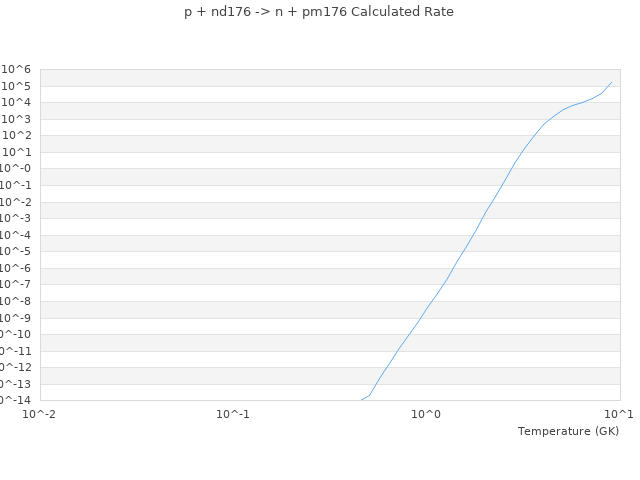

| View Graph | |
